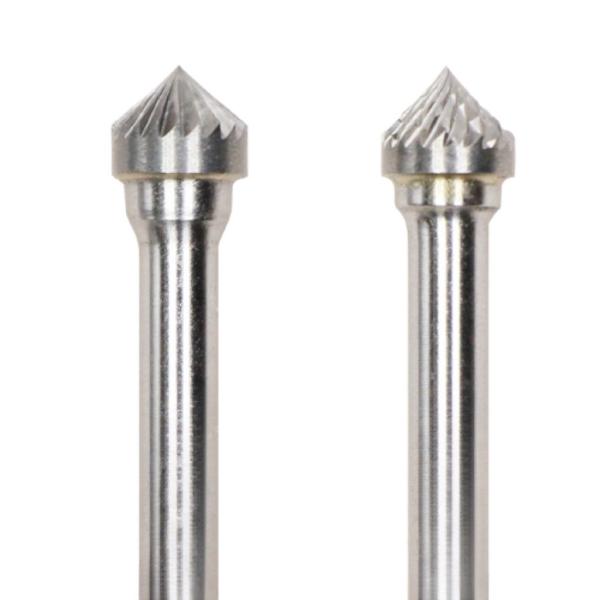

90°Countersink SK Carbide Burr Single Cut Die Grinder Bit 10mm *5mm On 6mm Shank
Description:
The SK 90° countersink carbide burr is a rotary tool with a conical shape designed for countersinking, chamfering, and deburring at a precise 90-degree angle. It is ideal for applications requiring a 90-degree bevel or countersink, commonly in materials like metal, wood, plastic, and more.
The SK carbide burr is commonly used in metalworking, woodworking, automotive, and aerospace industries for high-precision tasks requiring a larger cutting surface. It works effectively with die grinders or rotary tools, offering both efficiency and accuracy in professional settings.
90°Countersink SK Carbide Burr Single Cut
Brand: BABOS
Material: Tungsten Carbide
Cut Diameter:10mm
Length of Flute: 5mm
Shank Diameter: 6mm
OAL: 50mm
Cut Type: Single Cut
Other Available Sizes Related to Type K Carbide Burrs Both in Metric and Inch Standard:
| Metric Standard | | Shank Dia. (mm) | Cutter Dia. (mm) | Length of Cut (mm) | Overall Length (mm) | Tool No. | The Combination of Head and Shank | | d2 | d1 | l2 | l1 | | 3 | 3 | 2 | 38 | K0302 | Solid | | 6 | 6 | 3 | 48 | K0603 | Brazed | | 8 | 4 | 52 | K0804 | Brazed | | 10 | 5 | 53 | K1005 | Brazed | | 12 | 6 | 54 | K1206 | Brazed | | 16 | 8 | 57 | K1608 | Brazed | | 19 | 9 | 58 | K1909 | Brazed | | 25 | 12 | 61 | K2512 | Brazed | | 8 | 12 | 6 | 54 | K1206 | Brazed | | 16 | 8 | 57 | K1608 | Brazed | | 19 | 9 | 58 | K1909 | Brazed | | 25 | 12 | 61 | K2512 | Brazed | | Inch Standard | | Shank Dia. (inch) | Cutter Dia. (inch) | Length of Cut (inch) | Overall Length (inch) | Tool No. | The Combination of Head and Shank | | d2 | d1 | l2 | l1 | | 1/8'' | 1/8" | 1/16" | 1-1/2" | SK-42 | Solid | | 1/4'' | 1/4" | 1/8" | 2" | SK-1 | Solid | | 3/8" | 3/16" | 2-1/16" | SK-3 | Brazed | | 1/2" | 1/4'' | 2-1/9" | SK-5 | Brazed | | 5/8" | 5/16" | 2-1/4" | SK-6 | Brazed | | 1" | 1/2'' | 2-3/8" | SK-9 | Brazed | | |
Customization:
- Please send us the drawings or other important information if you need non-standard carbide burrs.
- Please contact us if you need more information about type K burrs or other shapes of burrs.
- OEM is avaliable.
Cut Selection Guide:
| STANDARD CUT(M) | STANDARD DOUBLE CUT (X) | WIDE CUT (C) | FINE CUT (F) | ALUMINUM CUT(W) | DIAMOND CUT(D) |
 |  |  |  |  |  |
